2d & 3d CAD services

I use the latest version of Solidworks, one of the leading CAD design software packages, and AutoCAD, to convert your idea into a professional 2D or 3D CAD drawing. Providing clients with high-quality renders, concept drawings, site layouts or manufacturing drawings to meet their exact requirements.

 I’m happy to take your enquiry over the phone, in person, work from hand sketches, existing drawings or physical parts that can be reverse engineered to produce a current working drawing for todays manufacturing processes.





mechanical design drawings from concept to manufacture

I have over 20 years experience producing mechanical design drawings for the food and beverage manufacturing sector. Supplying 2D or 3D factory layout concept designs to full 3D CAD working drawings and modelled parts and assemblies.

Each manufacturing drawing shows working processes, materials, dimensions, quanities and accurate cutting lists. Helping you to control material yield, speed up manufacture times and maximise the efficiency of assembly and installation teams.



full specification, METAL FABRICATION manufacturing drawings

I am happy to work from an initial design brief which I can take over the phone or a hand-drawn sketch to turn your vision into either a concept design or a set of full manufacturing drawings.

Manufacturing drawings can be supplied with:

  • Full cutting lists including material specifications

  • Laser cutting profiles

  • Folding details

  • Manufacturing quantities

  • Material descriptions and finishes

  • Assembly information



signage visualisations From concept to installation

With over 20 years of experience within the sign & display industry, I have accumulated an in-depth understanding of material specifications and health and safety requirements.

I’m often asked to produce technical drawings of 3D parts or assemblies, as well as assembly instructions to aid clients and installations teams on site.

I understand that quick turn around times are often required within this industry sector, and I try to facilitate this wherever possible.

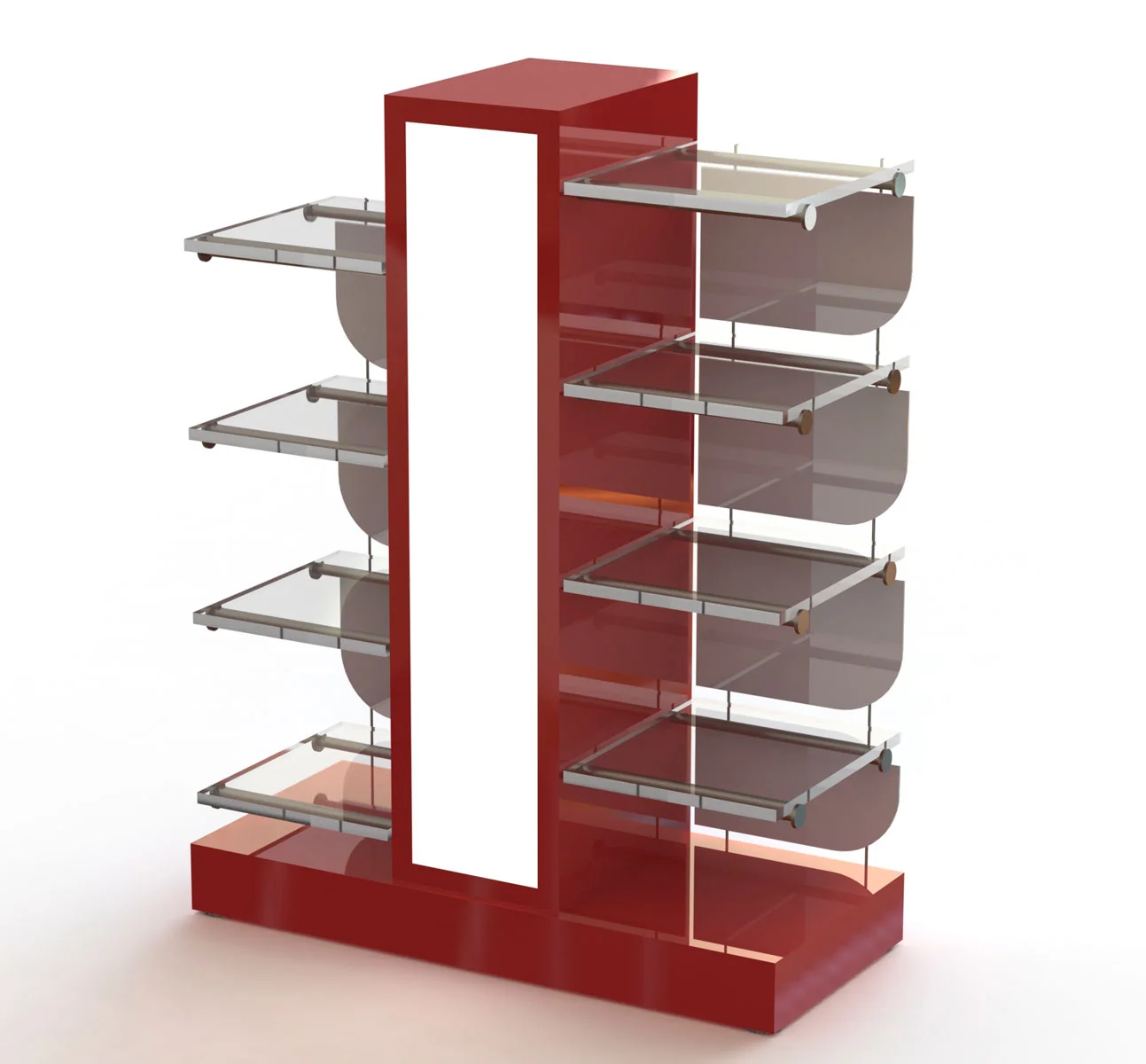

High impact CONCEPT MODELLING

A 3D visualisation will transform a concept idea or 2D design into a realistic, high-impact image that enables clients to view and understand their design in a more tangible way.

Sales and design teams can utilise this cost-effective technology to bring designs to life, greatly facilitating more in-depth communications with clients at the design and concept stage.

BENEFITS OF THIS SERVICE

  • Make changes to material and finishes without incurring actual material costs.

  • Understand the visual impact of the design in its final surroundings.

  • Clients get a better understanding of the design and final finish, making it easier to make changes before production gets underway.



highly accurate Equipment layouts

Accuracy is the most important factor when creating equipment layouts. Time spent in the planning and layout stage can eliminate manufacture errors and costly installation revisits.

Layouts can be produced in both 2D & 3D depending on the requirements. These can then be used for:

  • Customer approvals

  • Accurate material costings

  • Clarification of site dimensions

  • Assisting an installation team on site



Get in touch

If you would like to talk about your next project or get a quote.
